1968-69 Ford Mustang Aluminum Radiator 2 Row 289,302,351 Engines W/ AC

1968-69 Ford Mustang Aluminum Radiator 2 Row 289,302,351 Engines W/ AC

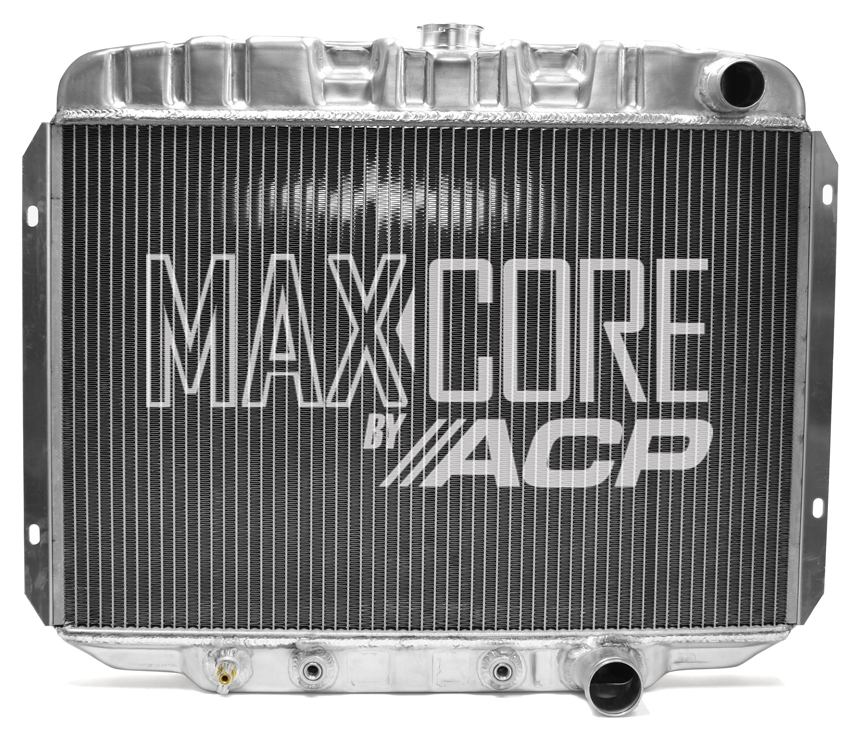

This radiator is a brand new product being introduced by "APC" All Classic Parts. An "OE" original style radiator constructed in aluminum that looks just like the original copper unit. This radiator is a Max Core unit with 1.25 inch tubes for maximum cooling capacity. This radiator is correct for all 1969-70 Mustang originally equipped with the 289,302,351 engine W/AC

Specs & Details



Overall Dim (W x H x D): 24" x 21 1/2" x 3"

Core Size (W x H x D): 23 1/2" x 16 x 2 5/8"

Inlet Diameter: 1 1/2" Top Right

Outlet Diameter: 1 3/4" Bottom Right

Mounting Type + Width: Saddle Mount

Tube Size: 1 1/4"

Tubes per Row: 58

Tube Spacing/Fin Height: 5/8"

Fins/inch: 16

A/T Cooler: Yes

Weight: 15.5 lbs














Fully tig-welded with a billet filler neck for sustained durability. Along with OE Styling comes a Direct Fit for hassle -free installation. ACP Radiators are made specifically for the vehicles stated. No universal fitments. PERFORMANCE is not a typo. ACP
SKU FM-ER206
Weight 15.00 lbs

Our price: $311.95 (233.96)
